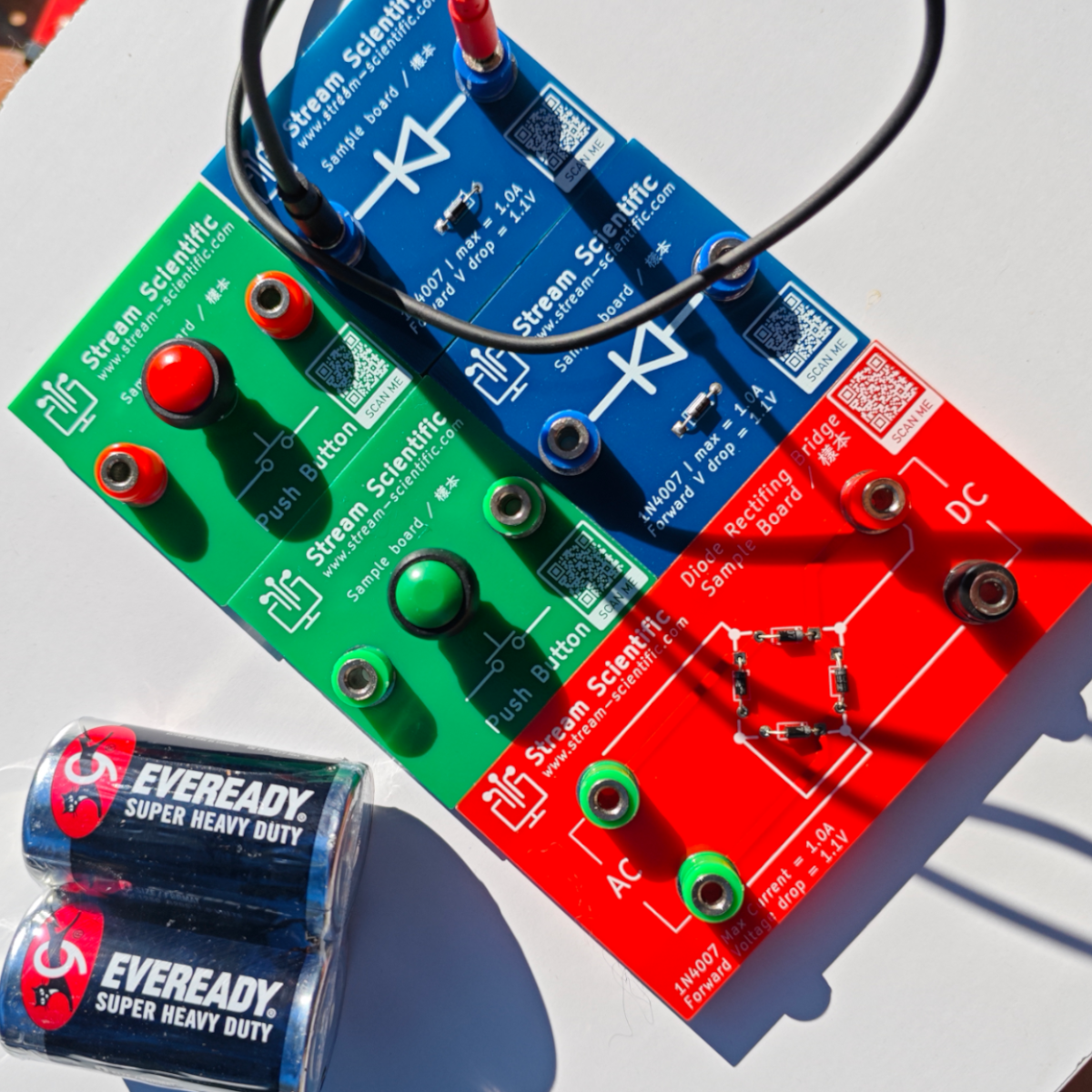

60 x 60 mm Electronic Component in PCB

Size : 60mm x 60 mm;

This custom PCB transforms the abstract concept of electrical resistance into a tangible, hands-on reality. Students benefit in three key ways:

1. Reduced Cognitive Load: By eliminating the frustration of loose wires and incorrect breadboarding, students can focus entirely on the core physics concepts—what resistance is and how it affects a circuit—rather than on troubleshooting faulty connections.

2. Scaffolded Inquiry: The board is designed for success. Labeled values allow them to immediately connect a number (e.g., 1kΩ) to an observation (a dim LED). This builds confidence and provides a solid foundation before they move on to more abstract calculations or building circuits from scratch.

3. Authentic Scientist Experience: Using a professional-looking tool like a PCB makes the learning experience feel authentic. It bridges the gap between a classroom "activity" and real-world engineering, fostering a sense of competence and engagement. They aren't just playing with parts; they are conducting investigations with a purpose-built scientific instrument.

AVAILABLE for the following component :

Resistor, Resistor Network;

Capacitor, Capacitor Network;

Inductor, Inductor Network;

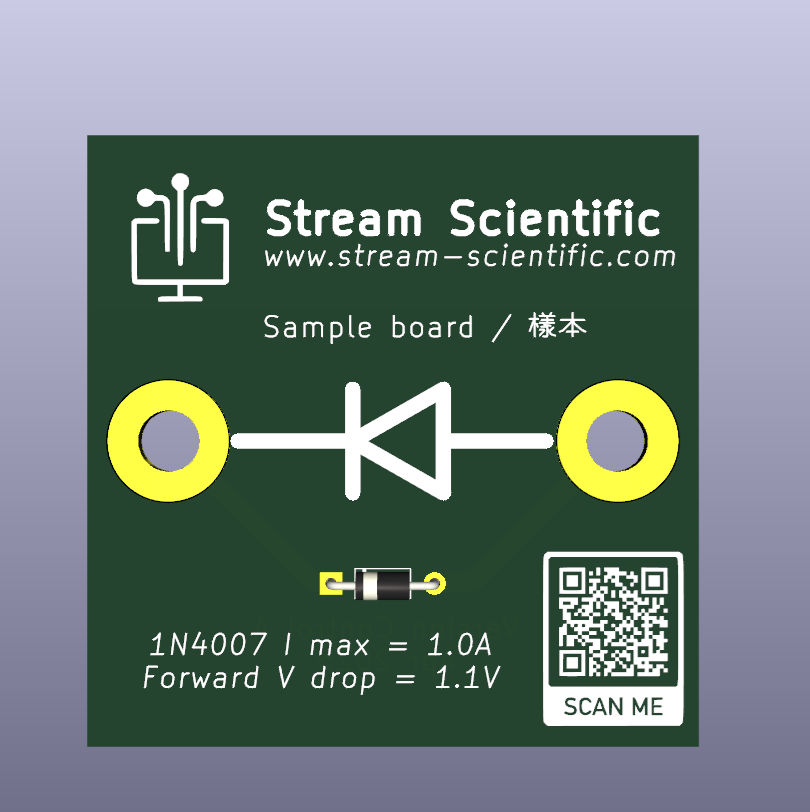

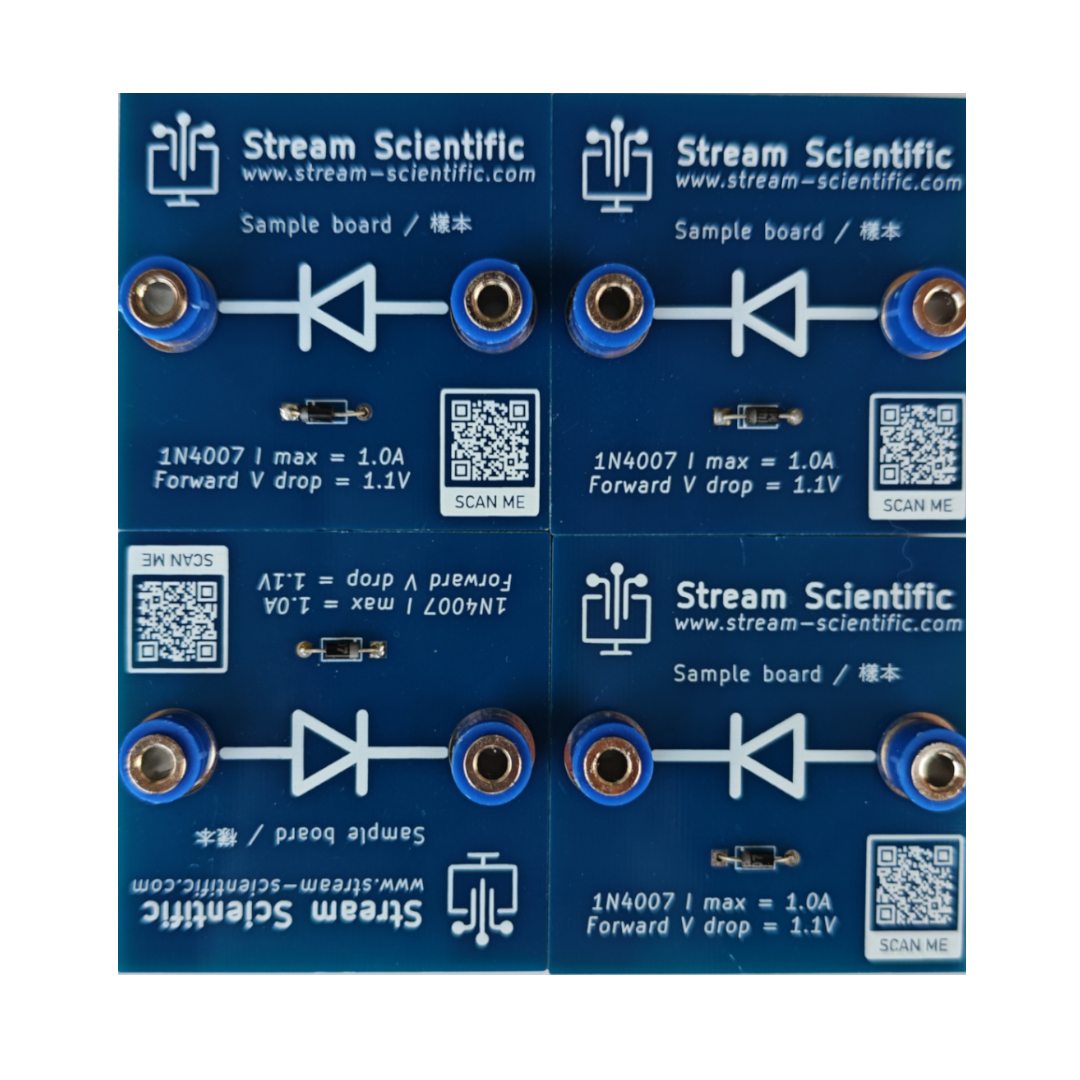

Diode, Diode Network;

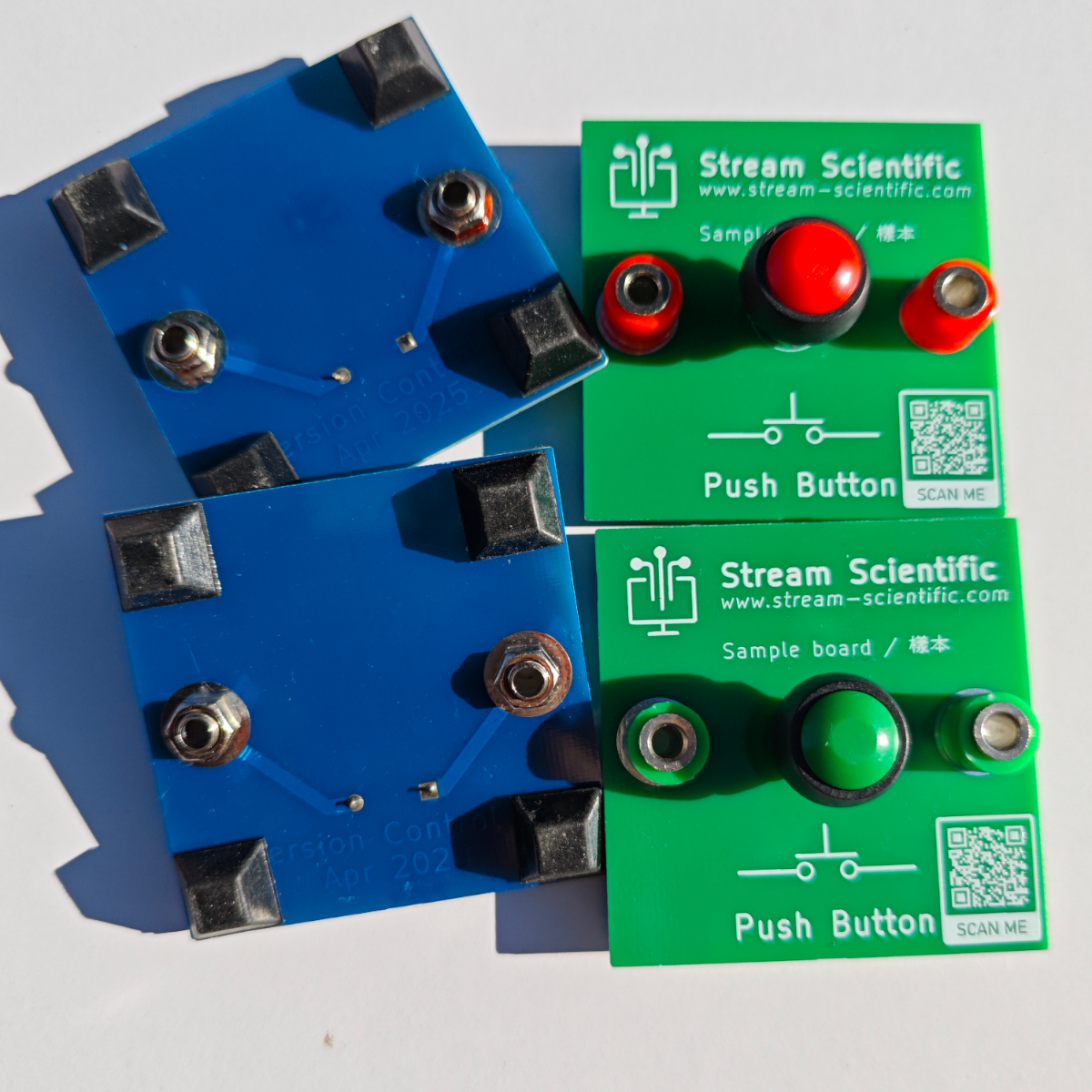

Switch (SPDT, DPDT, PUSH.......)

這種特製的電路板，將抽象的「電阻」概念轉化為一個具體、可動手操作的實體。學生主要在三個層面獲益：

1. 降低認知負荷： 電路板消除了麵包板接線錯誤、接觸不良的困擾。學生能將注意力完全集中在核心的物理概念上——即「什麼是電阻」以及它如何影響電路——而非耗費在除錯上。

2. 提供結構化探究： 這種設計是為了確保學生的成功體驗。標示清楚的電阻值，讓他們能立即將數字（例如 1kΩ）與觀察到的現象（例如一顆微亮的 LED）聯繫起來。這建立了他們的自信，為後續更抽象的計算或從零搭建電路，奠定了堅實的基礎。

3. 體驗真實的科學實踐： 使用這種外觀專業的電路板，讓學習體驗更加真實。它彌合了課堂「活動」與真實世界工程之間的差距，培養了學生的成就感與參與感。他們不再只是「玩零件」，而是在使用一個為特定目的打造的科學工具進行探究。
