Van De Graaff Generator

The Van de Graaff generator is a device used in physics studies to generate and store high voltage static electricity. It was invented by physicist Robert J. Van de Graaff in the 1920s.

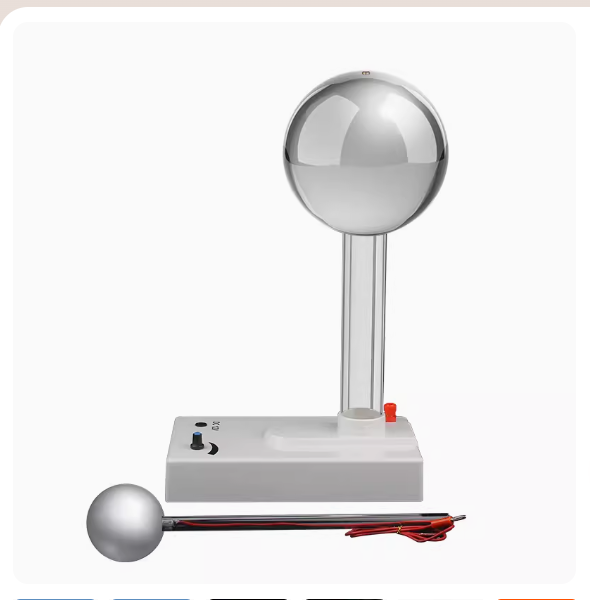

The generator consists of a large hollow metal sphere mounted on top of a column. Inside the column, there is a motor-driven belt made of insulating material, such as rubber or nylon. Two pulleys are used to drive the belt, with one at the bottom connected to a motor and the other at the top connected to the metal sphere. The belt continuously moves upward, carrying positive charges to the metal sphere.

As the belt moves, it rubs against rollers or brushes called "charge collectors" at the bottom of the column. This contact causes electrons to be transferred from the belt to the metal sphere, resulting in the accumulation of positive charges on the sphere. The taller the column and the faster the belt moves, the higher the voltage that can be achieved.

The Van de Graaff generator can generate high voltages, often reaching several hundred thousand volts. This high voltage creates a strong electric field around the metal sphere. The electric field can be used for various experiments and demonstrations in physics, such as studying electrostatics, demonstrating electrical discharge phenomena, or accelerating charged particles.

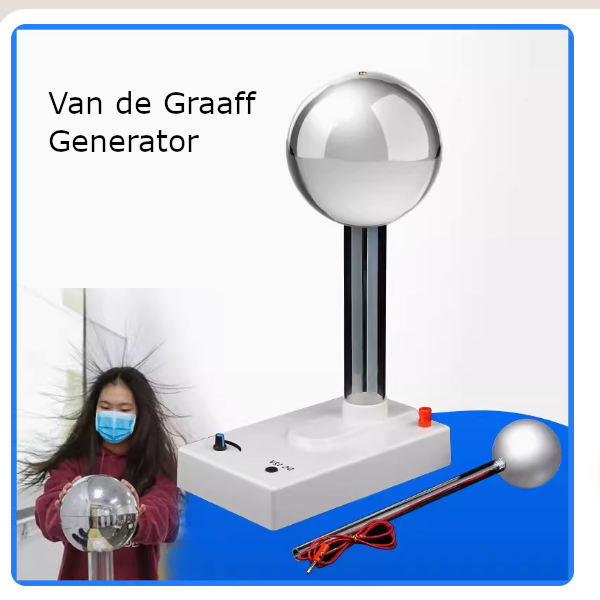

One common experiment using the Van de Graaff generator is the "hair-raising" demonstration. When a person touches the metal sphere while standing on an insulated platform, the accumulated charge is transferred to their body, causing their hair to stand on end due to the repulsion between the like charges on the hair strands.

Overall, the Van de Graaff generator is a valuable tool in physics education as it allows for hands-on exploration of static electricity, electric fields, and high voltage phenomena.

范德格拉夫發電機是物理研究中用來產生和儲存高壓靜電的裝置。 它是由物理學家 Robert J. Van de Graaff 在 1920 年代發明的。

發電機由安裝在柱子頂部的大型空心金屬球組成。 立柱內部有一條由橡膠或尼龍等絕緣材料製成的馬達驅動帶。 兩個滑輪用於驅動皮帶，一個在底部連接到電機，另一個在頂部連接到金屬球。 皮帶不斷向上移動，將正電荷帶到金屬球上。

當皮帶移動時，它會摩擦柱底部稱為“電荷收集器”的滾筒或刷子。 這種接觸導致電子從傳送帶轉移到金屬球，導致球體上積聚正電荷。 柱越高，皮帶移動越快，可以達到的電壓就越高。

范德格拉夫發電機可以產生高電壓，通常達到數十萬伏特。 這種高電壓在金屬球周圍產生強電場。 電場可用於物理學中的各種實驗和演示，例如研究靜電、演示放電現像或加速帶電粒子。

使用范德格拉夫發生器的一項常見實驗是「令人毛骨悚然」的演示。 當人們站在絕緣平台上觸摸金屬球時，累積的電荷就會轉移到他們的身體上，由於髮絲上相同電荷之間的排斥力，導致頭髮豎起。

總的來說，范德格拉夫發電機是物理教育中的一個有價值的工具，因為它允許動手探索靜電、電場和高壓現象。
